Environmental and Reliability Test

Environmental and reliability testing is to ensure that a product maintains functional reliability during its defined life, under the environment in which it is expected to be used, transported or stored. It exposes the product to the natural or artificial environmental conditions to undergo its action, in order to evaluate the performance of the product in the actual use, transportation and storage of environmental conditions, is one of the important quality characteristics of the product. Generally, environmental reliability test is divided into mechanical environmental test, climate environmental test and comprehensive environmental test. Mechanical environment tests mainly include mechanical vibration, mechanical impact, drop, collision and other tests. Climatic environment tests include temperature test, temperature/humidity test, air pressure test, water test, salt spray test, sand dust test, gas corrosion test, etc. Comprehensive environmental test mainly includes temperature and pressure comprehensive test, temperature and vibration comprehensive test, temperature and humidity vibration comprehensive test, temperature and pressure and humidity comprehensive test, etc.

Service Content

NOA focus on the compliance and quality of electrical and electronic products, and establish a one-stop service platform for consulting, testing and certification. We provide professional testing services for environmental and reliability test.

Relevant Standards

○ GB/T 2423/IEC 60068-2 series《Environmental testing for electric and electronic products - Part 2: Test methods》

○ GB/T 4208/IEC 60529《Degrees of protection provide by enclosure (IP code)》

○ GB/T 5080.1《Reliability testing - Part 1: Test conditions and statistical test principles》

○ GB/T 5080.2《Reliability testing - Part 2: Design of test cycles》

○ GB/T 5080.4《Equipment reliability testing--Procedure for point estimates and confidence intervals from reliability determination tests(Exponential distribution)》

○ GB/T 5080.5《Equipment reliability testing--Compliance test plans for success ratio》

○ GB/T 5080.6《Equipment reliability testing--Tests for the validity of a constant failure rate assumption》

○ GB/T 5080.7《Equipment reliability testing--Compliance test plans for failure rate and mean time between failures assuming constant failure rate》

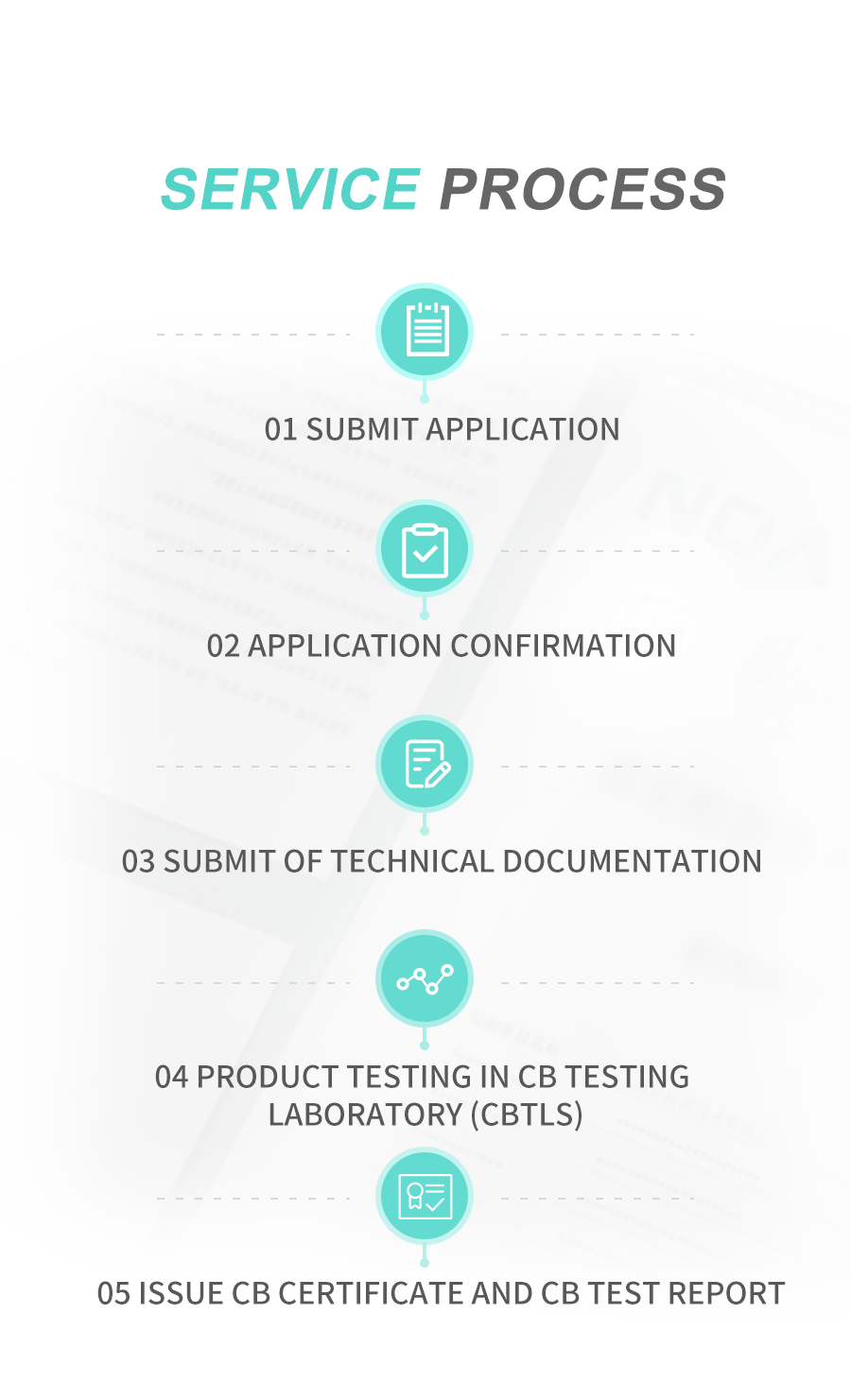

Service Process

Q&A

What is the difference between UV lamp and Xenon-arc lamp exposure ageing test?

The spectral distribution of fluorescent UV lamp can only simulate the UV part of sunlight, while the Xenon-arc lamp simulates the spectral distribution of the whole sunlight. Xenon- arc lamp has strong radiation in the 1000nm-1200nm wavelength infrared region, which will generate a lot of heat. Moreover, because the energy of UV part of Xenon-arc lamp increases less than that of UV lamp, the acceleration rate is relatively low. The simulation of fluorescent UV lamp is poor, but because of its high acceleration rate, by selecting the appropriate type of lamp can achieve the rapid screening of specific materials.

What metals is the salt mist test applied to?

Neutral salt mist test is suitable for metal and its alloy, metal coating, organic coating, anodic oxidation film. Acetate salt mist test and copper accelerated acetate salt mist test are suitable for copper + nickel + chromium or nickel + chromium decorative coatings and also for aluminum anodizing film.

What is the purpose of vibration test?

The purpose of vibration test is to simulate a series of vibration phenomena. Test the product in the life cycle, whether can withstand the vibration environment of transportation or use process, also can determine the product design and function requirements. The purpose of vibration test is to confirm the reliability of the product and to screen out the defective products before leaving the factory in advance, and to evaluate the failure analysis of the defective products so that they become high level and high reliability products.

IP代What is the meaning of the waterproof protection number in the IP code?

IPX0: Non-protected;

IPX1: Protected against vertically falling water drops;

IPX2: Protected against vertically falling water drops when enclosure tilted up to 15°;

IPX3: Protected against spraying water;

IPX4: Protected against splashing water;

IPX5: Protected against water jets;

IPX6: Protected against powerful water jets;

IPX7: Protected against the effects of temporary immersion in water;

IPX8: Protected against the effects of continuous immersion in water;

IPX9: Protected against high pressure and temperature water jets.

Our Advantage

Authoritative Qualification

NOA has been approved by Certification and Accreditation Administration of the People’s Republic of China（CNCA）(CNCA-R-2002-051), and has obtained qualification of China Inspection Body and Laboratory Mandatory Approval (CMA),and has passed the multiple approvals of China National Accreditation Service for Conformity Assessment (CNAS), International Accreditation Service (IAS), United Kingdom Accreditation Service (UKAS), Joint Accreditation System of Australia and New Zealand (JAS-ANZ). NOA has been approved by State Administration for Market Regulation of China, and has been recognized as inspection and testing institution of China's special equipment, as well as the qualification of China's national equipment supervision and engineering supervision. NOA-DCI is the notified body of the CE directive of the European Commission. NOA has been recognized by the International Electrotechnical Commission (IECQ) by obtaining Electronic Component Quality Assessment System. It is also a national inspection and assessment notified body of import and export commodity in China.NOA is a high-tech enterprise in Shanghai.

Improve Performance, Realize Asset Value Appreciation, and Service Throughout the Entire Value Chain

From pre-design to post-operation, NOA has the ability to guarantee the whole life cycle of the business. NOA, as an independent third-party inspection company, has a large number of domestic and international standards and specifications proficient in design, welding, non-destructive testing, painting, packaging and other fields The experienced team of professional engineers and inspection experts, with more than ten years of experience in the domestic market, is familiar with all aspects of the domestic industrial equipment supply chain, and can provide you with technical support services for the full life cycle of technical services in a timely manner, combining various products. Inspection, certification, testing, consulting, and auditing services can provide you with one-stop all-round comprehensive services.

Quality, Efficiency and Service

NOA has formed a mature and solid operation system in the development of more than 20 years. We let technical experts who are familiar with market regulations and testing standards and have professional industry experience to carry out inspection, evaluation and design review work. While meeting the requirements of domestic and international standards, we ensure that customers can obtain satisfactory service results in the first time with accurate time-sensitive management methods, and ensure that customers can seize the opportunity in the market competition.

Service Area

NOA inspection services currently cover Europe, Australia, Russia, some Middle East regions and most regions in China. NOA can ensure the consistency and continuity of customer service in different regions, and eliminate the impact of unfamiliar environments on customer quality. The guarantees and the impact of project implementation enable customers to participate in different markets across the country or around the world with flawless quality.
